50 Ohm Mini

  • Rated to 20,000 cycles
  • Multiple termination options including PCB mount

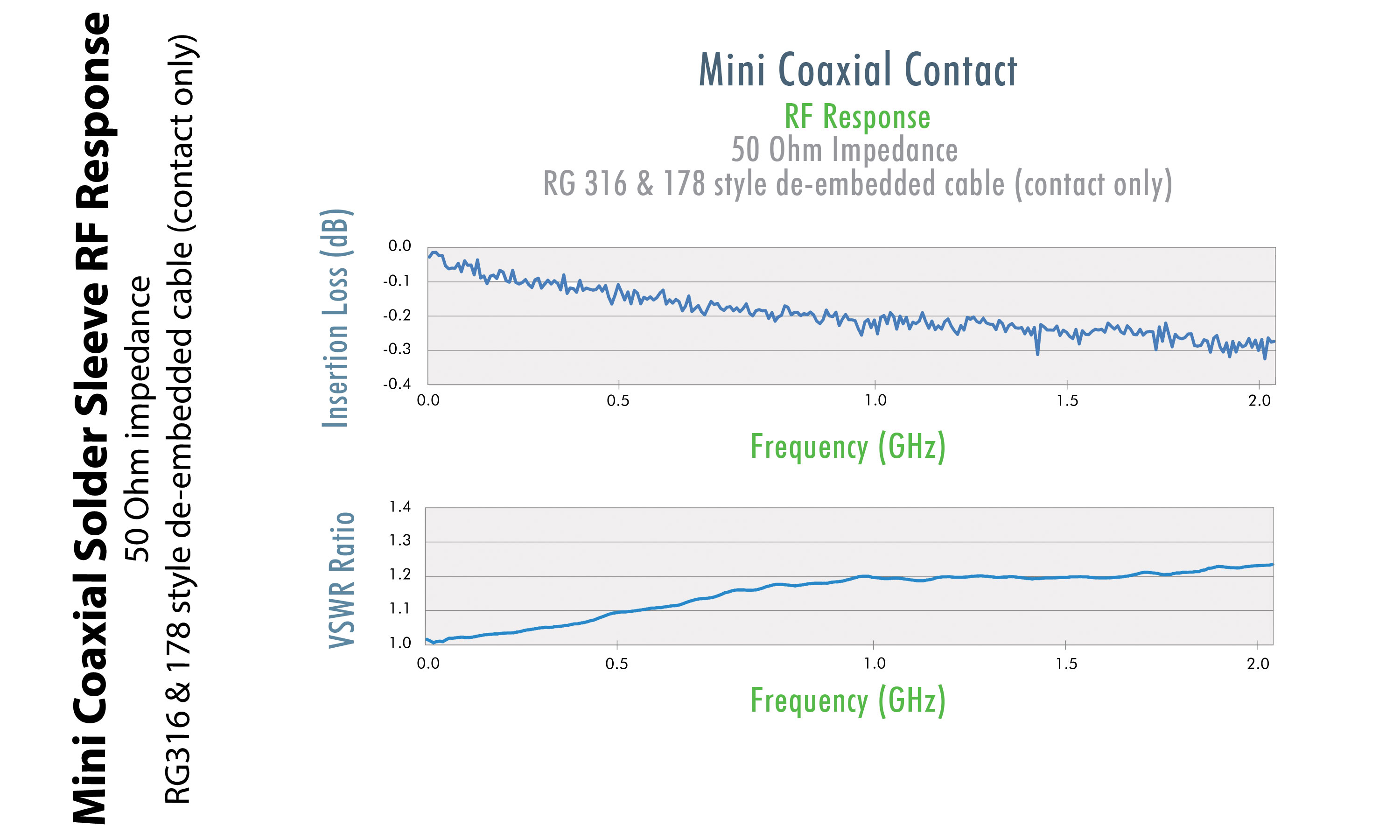

  • Max VSWR less than 1.02 up to 500 MHz
  • Cross talk less than 60 dB @ 500 MHz
  • Insertion loss less than 0.05 dB @ 500 MHz
  • Resistance 5 mOhms max @ 0.5 Amps, never exceeding 10 mOhms

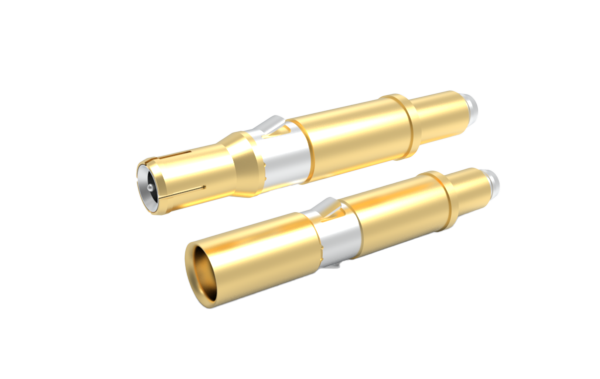

Contact - ITA

  • Mini Coax, Contact, ITA, RG316
    Mini Coax, Contact, ITA, RG178
    Mini Coax, Contact, ITA, Solder Sleeve, RG316 & RG178
    Mini Coax, Contact, ITA, RG316 Double Shield
    Mini Coax, Contact, ITA, RG178
    Mini Coax, Contact, ITA, 22 AWG

Contact - Receiver

  • Mini Coax, Contact, Receiver, RG316*
    Mini Coax, Contact, Receiver, RG178
    Mini Coax, Contact, Receiver, Solder Sleeve, RG316 & RG178
    Mini Coax, Contact, Receiver, RG316 Double Shield
    Mini Coax, Contact, Receiver, Right Angle for PCB Mounting

Tool- Crimp

  • Tool, Crimp, Mini Coax, RG 316 and RG 178
    Tool, Crimp, Mini Coax, ITA, 24-26 AWG Wire

Tool- Crimp Die

  • Tool, Crimp Die,  Mini Coax, RG316 and RG178, with Locator

Tool- Extraction

  • Tool, Extraction, Mini Power and Mini Coax, Receiver and ITA

Tool- Locator

  • Tool, Locator, Mini Coax, 24 AWG Wire

Tool- Misc

  • Tool, Center Conductor Forming, Mini Coax, Receiver
    Tool, Outer Shield Conductor Forming, Mini Coax, ITA
    Tool, Weight Gauge Kit, Mini Coax, Receiver
    Tool, Outer Shield Conductor Expanding, Mini Coax, ITA
    Tool, Center Conductor Enlarging, Mini Coax, Receiver
    Tool, Solder Kit, Mini Coax with Solder Sleeve (Includes Raychem Holding Fixture AD-1319)
    Tool,  Adapter,  Raychem Holding Fixture AT-1319-29
    Tool, Weight Gauge Kit, Mini Coax, ITA
    Tool, Inspection Depth Gauge, Mini Coax, Receiver
    Tool, Inspection Depth Gauge, Mini Coax, ITA
