310122101

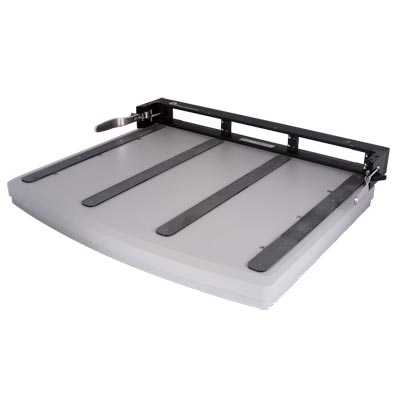

Receiver, S6, 6 Module, 15" Platform, For Slide Mount (slide kit required)
| Specifications | |
|---|---|
| Weight | 14.8 lbs [6.71 kg] |
| Rotation Block Material | Powder Coated Aluminum |
| Frame Material | Powder Coated Aluminum |
| Alignment Pins | Stainless Steel |
| Handles | Nickel Plated Alloy Steel |
| Available Module Slots | 6 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Mating Force | 280 lbs. |
The S6 Receiver is designed to mount to slides in a rack application or directly to a tabletop. It features positive-latching mechanisms and integrated guide pins to create a highly reliable engagement system. The S6 Receiver is very versatile and has module positions screened on top for ease of module placement.
