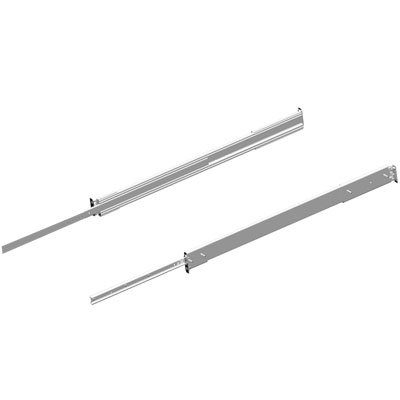

24" Slide Kit, Fits 24"-26" Deep Racks, Supports 180 lbs.
24" Slide Kit, Fits 24"-26" Deep Racks,Supports 180 lbs.
Measure rack depth between mounting rails to determine the slide mounting kit that fits the rack. An extender block kit is available for mounting to racks with recessed rails.
Accessories and Related Parts
Accessory
Part Number
Description
Platform Kit 15", S6, Receiver
Platform Kit 20", S6, Receiver
Keyboard Tray
Keyboard Tray Kit, Slide Configuration, Keyboard with Touchpad Mouse Included
Mounting Flange Kit
Mounting Flange Kit, G20/G20x, Receiver, f/ NI PXI-1045 & PXI-1085 Chassis
Receiver
Receiver, G12, 12 Module, 20" Platform, for Slide Mount (slide kit required)
Receiver, G12x, 18 Module, with 20" Platform, for Slide Mount (slide kit required)
Receiver, 9025TR, 25 Module, with 20" Platform (slide kit required)
Receiver, G20x, 28 Module, for Slide Mount, Interchangeable Handle (L or R)
Receiver, G20, 20 Module, for Slide Mount, Interchangeable Handle (L or R)
Receiver, S6, 6 Module, with 15" Platform, for Slide Mount (slide kit required)
Slide Kit
20" Slide Kit, Fits 20"-22" Deep Racks, Supports 180 lbs.
30" Slide Kit, Fits 30"-32" Deep Racks, Supports 180 lbs.
28" Slide Kit, Fits 28"-30" Deep Racks, Supports 180 lbs.
36" Slide Kit, Fits 36"-38" Deep Racks, Supports 180 lbs.
