Specifications
Weight	2.6 lbs [1.18 Kg]
Frame Material	Powder Coated Zinc Alloy
Available Module Slots	6 Positions
Cycle Life	20,000 Cycles
Temperature	-55ºC to 85ºC
Max. Mating Force	280 lbs.

	Part Number	Description

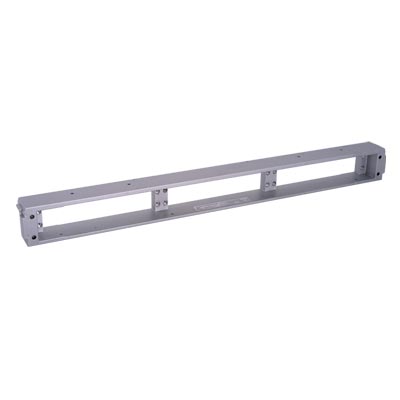

	310122100	Receiver, S6, 6 Module
	310122101	Receiver, S6, 6 Module, with 15" Platform, for Slide Mount (slide kit required)
	310122108	Receiver, S6, 6 Module, with 20" Platform, for Slide Mount (slide kit required)
	310122110	Receiver, S6, 6 Module with 15" Platform for Tabletop
	310122111	Receiver, S6, 6 Module with 20" Platform for Tabletop

	Part Number	Description
	410112701	Enclosure, S6, 1U Height, 8" Depth
	410112702	Enclosure, S6, 1U Height, 4 Cable Clamps, 8" Depth
	410112703	Enclosure, S6, 2U Height, 12" Depth
	410112712	Enclosure, S6, 2U Height, 4 Cable Clamps, 12" Depth
