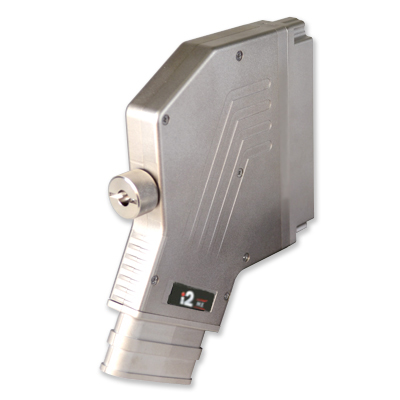

410130114

What's New
Online Tools
Receivers/ITAs
Low I/O Solutions

High I/O Solutions

Platform

Pull Thru Solutions

iSeries

Docking / ATE

Accessories
Low I/O Solutions

VPC's most popular low I/O solutions offering 2-15 module capacity

G2

Configured for up to 2 modules

Engages up to 480 signal contacts

G6

Configured for up to 6 modules

Engages up to 1,440 signal contacts

G6x

Configured for up to 9 modules

Engages up to 1,920 signal contacts

G10

Configured for up to 10 modules

Engages up to 2,400 signal contacts

G12

12 Module Solution

VPC's Most Popular Interconnect Solution

G10x

Configured for up to 15 Modules

Engages up to 3,200 signal contacts
High I/O Solutions

VPC's most popular high I/O solutions offering 18-75 module capacity

G18

18 Module Solution

Compatible with VPC 90 Series Modules

9025

Ideal for Rack Mount Applications

Configured for up to 25 Modules

9025TR

High I/O Platform Solution

Configured for up to 25 Modules

9025 VXI

25 Module VXI Solution

Pre-wired adapters for wiring directly to VXI cards

9050

High I/O System Ideal for Rack Mount Applications

Configured for up to 50 Modules

9050TR

High I/O Platform Solution

Configured for up to 50 Modules

9050 VXI

50 Module VXI Solution

Pre-wired adapters for wiring directly to VXI cards

9075

3 Tier, 75 Module Solution

Compatible with VPC 90 Series modules
Platform

The addition of a receiver platform helps to provide easier ITA/ Receiver engagement, proper alignment, and ITA enclosure support.

S6

Engages up to 1,440 signal contacts

Only 1U rack height

G12

Configured for up to 12 modules

15" or 20" platforms available

G12x

Configured for up to 18 modules

15" or 20" platforms available

9025TR

Configured for up to 25 modules

Compatible with VPC 90 Series modules

9050TR

2-Tier, 50 Module Solution

Compatible with VPC 90 Series Modules
Pull Thru Solutions

Allows pull through removal of connector modules and instrumentation from chassis backplane.

G20

Configured for up to 20 modules

Mate over 2,000 signal points

G20x

Configured for up to 28 modules

Can be used with PXI pull-thru adapters

G40x

Configured for up to 48 modules

Can be used with PXI pull-thru adapters

Pull-Thru Adapters
iSeries

Small handheld solutions offering a variety of I/O protocols

i2 Micro iCon

High density modular, configurable signal connector

Engages up to 168 signal contacts

i2 MX

Modular, configurable signal connector

Offers EMI Protection

i1

Single Module connector

Engages up to 160 signal contacts

iCon

Two Module connector

Engages up to 320 signal contacts
Docking / ATE

VPC’s iDock Series features engageless frames for use with automatic test handling equipment to mate test adapters. Automatic docking connectors greatly reduce testing time and increase accuracy.

D1

Engages up to 160 signal contacts

Configured for 1 Module

D3/D4

Engages up to 672 signal contacts

Configured for 3 or 4 Modules

D12

Engages up to 2,880 signal contacts

Configured for up to 12 Modules
Accessories

Extraction Tools

Slide Kits

Interconnect Adapters

Strain Relief

Screw Kits

Tools
Contacts
Signal

High Speed Digital

Power

Coax

Thermocouple

Fiber Optic

Pneumatic

Twinax
Signal

VPC offers two types of signal contacts ideal for low voltage and low current applications.

QuadraPaddle Signal

5 Amp

22-28 AWG

TriPaddle Signal

7 Amp

20-24 AWG
High Speed Digital

VPC’s line of high speed inserts are designed to address the needs of test systems utilizing high speed data applications.

VTAC Insert

Data rate 12.5+ Gbps/ Diff pair

Only available in patchcords

VTAC Right Angle Insert

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Insert

12.5+ Gbps/ Diff pair

PCB to VTAC

SIM QuadraPaddle Insert

4 Signal contact positions

22-28 AWG

Twinax Contact

3 Amp

22 AWG
Power

VPC’s line of power contacts are designed for high current applications and vary in amperage up to 150 Amps.

Micro Power

21 Amp

12-14 AWG

Mini Power

65 Amp

8 AWG

High Power

150 Amp

2 AWG
Coax

VPC offers an impressive line of coax contacts ideal for a wide range of RF applications.

50 Ohm Mini

50 Ohm

1-2 GHz

50/75 Ohm Micro

3-10.5 GHz

RG 316, RG 178, RG 179

75 Ohm HD

75 Ohm HD

3 GHz

75 Ohm

DC to 3 GHz

RG179

20/26 GHz

50 Ohm

DC to 26 GHz

40 GHz Contact

50 Ohm

2.92 mm

50 GHz Micro

50 Ohm

Only available as a patchcord
Thermocouple

VPC thermocouple contacts offer match pairing for primarily K-type thermocouples.

Chromel, Type K(°C)

Alumel, Type K(°C)

Constantan, Type T(°C)

Copper, Type T(°C)
Fiber Optic

VPC fiber optic patchcords are available in Polymer Optical Fiber and Multimode. We also have the capability to provide specialty fiber optic patchcords and cables.

POF

For low speed, short distance needs

5,000 mating cycles

Multimode

For high speed needs

5,000 mating cycles
Pneumatic

VPC pneumatic contacts are ideal for air pressure applications such as industrial automation.

Mini

100 PSI Rating

20,000 mating cycles

1/8" ID

100 PSI Rating

20,000 mating cycles

3/8" ID

100- 250 PSI Rating

20,000 mating cycles
Twinax

VPC twinax contacts provide differential voltage options most commonly used in digital and data applications.
Modules
Product Series

Contact Type
Product Series

Choose the module type by VPC product line.

iCon Series

90 Series

Contact Type

Choose the module type needed by the VPC contact type being used.

High Speed Modules

Signal Modules

Coax Modules

Power Modules

Twinax Modules

Thermocouple Modules

Pneumatic Modules

Vacuum Modules
High Speed
VTAC PCB

Infinity Connector

VTAC Wired
VTAC PCB

Connect directly from contact to board.

VTAC Insert

12.5+ Gbps/ Diff pair

Pass thru insert

VTAC Right Angle

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Header

12.5+ Gbps/ Diff pair

PCB to VTAC

Infinity Connector

• Infinite connections
• VTAC, QP & Micro Power

PCB Adapters - VTAC

PCB to Std Connectors

Plug-and-Play

PCB Adapters - SIM

10+ Gbps/Diff pair

Plug-and-play
Infinity Connector

• Infinite connections
• VTAC, QP & Micro Power
VTAC Wired

Reduce resistance, increase signal integrity with a seamless transition from wire to connector.

VTAC Patchcords

Multiple protocols

Custom configurations

SIM QuadraPaddle

4 Signal contact positions

22-28 AWG

VTAC Modules

Available for 90 series & iSeries

Compatible with SIM inserts

VTAC Insert

Data rate 12.5+ Gbps/ Diff pair

Only available in patchcords

Twinaxial Contact

3 Amp

22 AWG
Wire & PCB
Enclosures

PCB Solutions

Online Wiring Tools

Wiring Services
Enclosures

VPC's in-house wiring team has the experience and know-how to build and assemble complete discrete-wired enclosures.

Standard Enclosures

Custom Enclosures
PCB Solutions

VPC offers multiple PCB solutions for flexibility and performance.

Infinity Connector

• Infinite connections
• VTAC, QP & Micro Power

PCB Mountable Receivers & Modules

iCon, i1, i2 Micro

Signal & Micro Coax Modules

PCB Adapters- SIM

10+ Gbps/Diff pair

Plug-and-play

PCB Adapters- VTAC

PCB to Std Connectors

Plug-and-Play

PCB Adapters- QuadraPaddle

168-192 signal pos

QB mod to PCB

PCB Adapters- TriPaddle

64-96 signal pos

TP mod to PCB

VTAC Right Angle

10+ Gbps/Diff pair

PCB to VTAC

VTAC Vertical Headers

Data rate 12.5+ Gbps/ Diff pair

Crosstalk -30dB min

Custom PCB Enclosures

Flexible options using PCB & wire

Economical versus wired ITA

Pull-Thru Solutions

Limited or no wiring

Remove instruments from chassis backplane
Online Wiring Tools

Use these powerful tools to build standard patchcords, find PXI card solutions or enter project wiring requirements.

Wiring Services

VPC's Wiring services provide engineered, finished and quality-tested cables assemblies and patchcords to help complete your test system.

Cable Assemblies- Receiver

Standard Patchcords

VPC's standard and stocked patchcords make getting patchcords easy and with quick turnaround times.

Flying Leads

VPC provides engineered, finished, and quality tested patchcords with flying leads to help customize your test system.

Customer Wirelist Template
Resources
FAQ

Customer Wirelist Template

Why Choose VPC?

VPC Capabilities

User Manuals

Tech Tips

Configurators

Performance Specs

Videos

Regulatory, Compliance & Certifications
FAQ

Customer Wirelist Template

Why Choose VPC?

VPC Capabilities

User Manuals

assets

Tech Tips

assets

Configurators

Performance Specs

Videos

Regulatory, Compliance & Certifications

assets

Specifications
Weight	.63 lbs [.28 Kg] without protective cover
Frame Material	Nickel-Plated Zinc
Hardware Material	Stainless Steel
Latches	Nickel-Plated Beryllium Copper
Backshell	Nickel-Plated Aluminum
Module Slots	2 Positions
Cycle Life	10,000 Cycles
Operating Temperature	-40°C to 125°C

	Part Number	Description
	510144001	Adapter Rails (for High Speed Inserts), i2MX, ITA, 88 Pos, 11 Slot
	510144002	Signal, Module, ITA, i2 MX, 84 position, QuadraPaddle, Crimp
	510144004	Signal/Micro Power/Micro Coax, Module Insert, ITA, TriPaddle, i2 MX, 9/9 Position
	510144005	Signal/Mini Power/ Mini Coax, Module Insert, ITA, TriPaddle, i2 MX, 8/8 Position
	510144006	Signal, Module Insert, ITA, TriPaddle, i2 MX, 33 Position
	510144008	20/26 Ghz Coax, Module Insert, ITA, i2 MX, 5 Position
	510144009	Micro Coax/Micro Power, Module Insert, ITA, i2 MX, 15 Position
