410130204

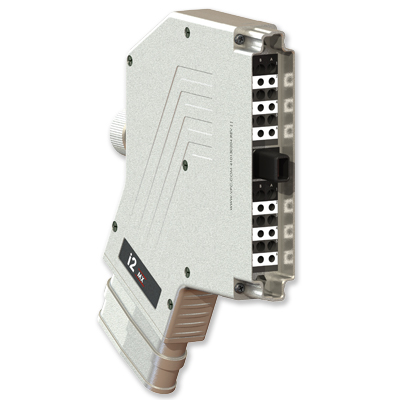

ITA, i2 MX, EMI, w/ 2 Hybrid Module Inserts
| Specifications | |
|---|---|
| Weight | .69 lbs [.31 Kg] without protective cover |
| Frame Material | Nickel-Plated Aluminum Alloy |
| Hardware Material | Stainless Steel |
| Latches | Nickel-Plated Beryllium Copper |
| Backshell | Nickel-Plated Aluminum |
| Modules Included | 510 144 004 (2) |
| Module Slots | 2 Positions |
| Cycle Life | 10,000 Cycles |
| Operating Temperature | -40°C to 125°C |
ITA, i2 MX, EMI, w/ 2 Hybrid Module Inserts
This model i2 MX includes 2 Hybrid Module inserts. Each module insert offers 8 Mini Power/Coax and 8 TriPaddle positions. Includes front protective cover.
Compatible with receiver p/n 310130114.
Keying feature requires purchase of separate keying kit p/n 310113461.
Cable bundle too large? Choose the i2 XL! XL-Sized backshell, bend radius, & cable exit to better accommodate larger cables such as high-power or high-speed.
