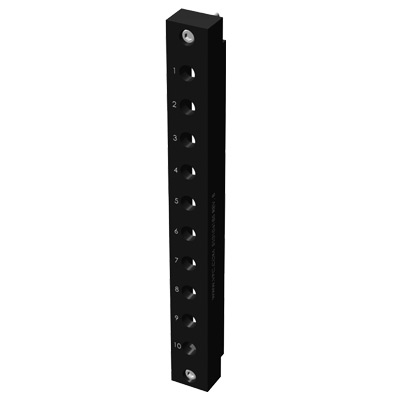

Pneumatic Module, Receiver, 10 Position (1/8" ID)
The 10 Position Pneumatic Modules are made of FR4, withstanding temperatures of 140°C. Nomenclature is silk-screened white onto the Modules.
Accessories and Related Parts
Contact - ITA
Pneumatic Contact, ITA, Hose Barb, for 1/8" [3.2 mm] ID Tubing
Contact - Receiver
Pneumatic Contact, Receiver (with valve), Hose Barb, for 1/8" [3.2 mm] ID Tubing
Pneumatic Contact, Receiver, Hose Barb, for 1/8" [3.2 mm] ID Tubing
Module - ITA
Module - Receiver
Signal, Module, Receiver, TriPaddle, 256 Position
Module Accessory Kit
Module Accessory Kit, Quantity 26, 4-40 x .625" Socket Head Cap Screws
