610131107

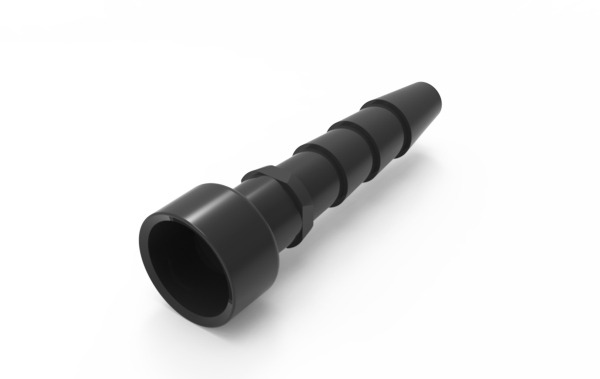

Pneumatic, Contact, Receiver (with valve), Hose Barb, for 1/8" [3.2 mm] ID Tubing
| Specifications | |
|---|---|
| Pressure/Vacuum Rated | 100 psi (6.9 Bar) |
| Operating Temperatures | -40°F to 180°F (-40°C to 82°C) |
| Contact Body | Delrin® |
| Cycle Life | 20,000 cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs.) | 0.74 |
Pneumatic, Contact, Receiver (with valve), Hose Barb, for 1/8" [3.2 mm] ID Tubing
Primary mating contact 610131106.
Used in receiver module p/n 510104185, mates to contact p/n 610131106 and ITA module
p/n 510108160.
