Specifications
Material	FR4
Temperature	Operating • -55° C to 125° C Non Operating • -55° C to 140° C
Dielectric Withstanding Voltage (DWV)	1500 VDC min.
Available Contact Positions	32
Module Slots Needed	1

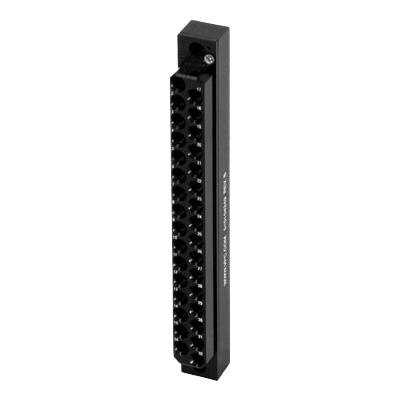

The 32 Position 75 Ohm Coax Receiver Module is made of G10 Epoxy Glass, withstanding temperatures of 140°C. Nomenclature is silk-screened white onto the Modules.

	Part Number	Description
	610104157	Coax, Contact, Receiver, 75 Ohm, RG179

	Part Number	Description
	510108179	Coax Module, ITA, 20/26 GHz, 75 Ohm and 75 Ohm HD, 32 Position

	Part Number	Description
	510109307	Module Accessory Kit, Quantity 26 2-56 x .250" Flat Head Slotted Screws

	Part Number	Description
	510109298	Strain Relief Plate, Receiver, 90 Series

Add To Quote
