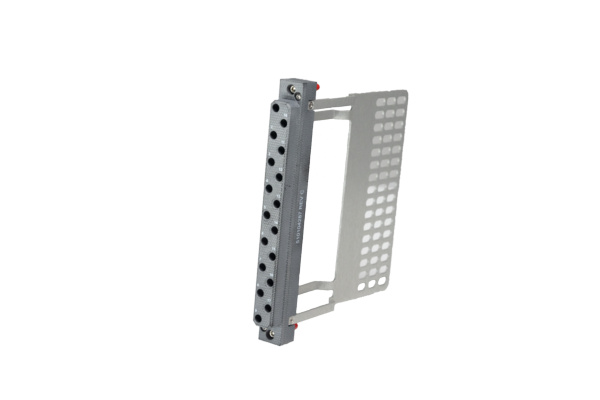

Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
Specifications | |
---|---|
Module Material | FR4 |
Temperature Range | Operating: -55°C to 125°C Non Operating: -55°C to 140 °C |
Dielectric Withstanding Voltage (DWV) | 1500 VDC min. |
Strain Relief Material | Aluminum |
Strain Relief Finish | Clear anodize |
Available Contact Positions | 17 |
Module Positions Needed | 1 |
Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
(For use w/ 20/26 GHz contacts & SMA adapter. Includes strain relief plate)
Primary mating module 510108240.
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
