Module Accessory Kit, Quantity 26 2-56 x .19" Flat Head Phillips Screws 100 Degree

Used with modules: 510104287, 510104289 and 510108125

	Part Number	Description

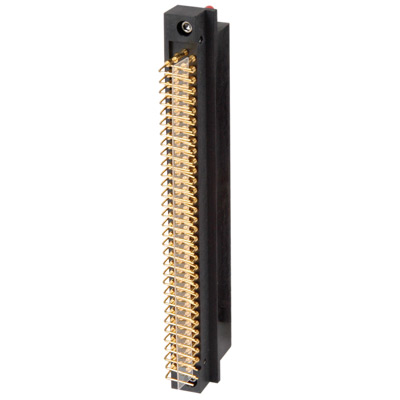

	510108125	Signal, Module, ITA, TriPaddle, 90 Series, 96 Position, with Right Angle Contacts

	Part Number	Description
	510104287	Coax, Module, Receiver, 20/26 GHz, 90 Series, 17 position, incl. strain relief plate
	510104289	Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief

Add To Quote
