510104289

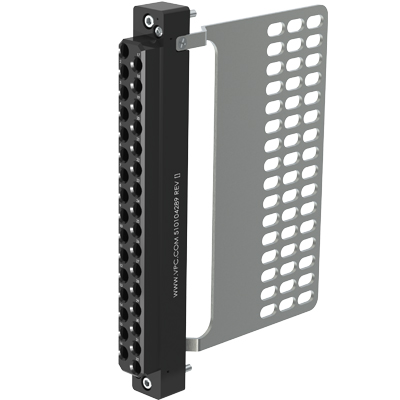

Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
| Specifications | |
|---|---|
| Module Material | Black-PPS |
| Temperature Range | Operating: -55°C to 125°C Non Operating: -65°C to 220°C |
| UL-94 Flame Class | V-0 |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC min. |
| Strain Relief Material | Aluminum |
| Strain Relief Finish | Clear Anodize |
| Available Contact Positions | 32 |
| Module Positions Needed | 1 |
Coax, Module, Receiver, 20/26 GHz/75 Ohm HD, 90 Series, 32 Position, incl. strain relief
Primary mating module 510108179.
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
