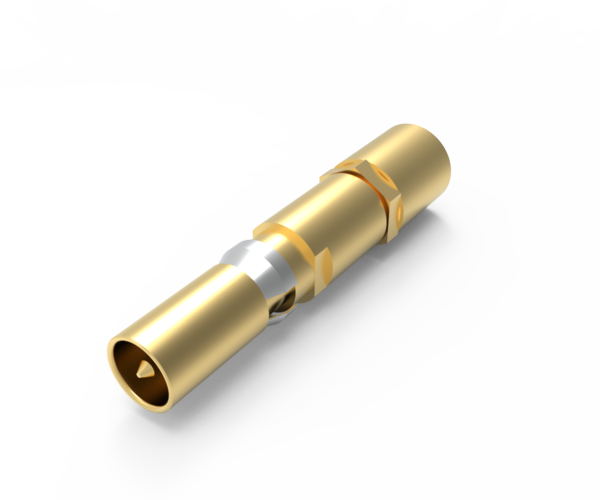

Coax, Contact, Receiver, 20/26 GHz, SF142B, 90 Series modules only

Mechanical Specifications
Durability 20,000 cycles
Contact Material Shield – Brass
Center Conductor – BeCu
Contact Plating 30µ" Au over 100µ" Ni
Contact Termination Shield – Crimp/Clamp
Insulator PTFE
Mating Force 3.0 lbs max [1.36 kg]
Electrical Specifications
Characteristic Impedance 50 Ohms
Frequency Range DC to 26 GHz
VSWR 1.15 + .01 (f) GHz w/ SF142 (20 GHz)
Insertion Loss .06 x√f(GHz) dB
DWV 800 V RMS Shield to center contact
1000 V RMS
Contact Resistance 5 mOhms center/ 3 mOhms outer
Cable Specifications SF142B
Environmental Specifications
Operating Temperature -65°C to +125°
Vibration MIL-STD 202, Method 204, Test Condition D
Shock MIL-STD 202, Method 213, Test Condition I
Insulation Resistance 2000 MOhms Min.

Coax, Receiver, 20/26 GHz, SF142B, 90 Series modules only

Primary mating contact 610102110. (May mate with other ITA contacts, as well.)

Configure as a Patchcord
