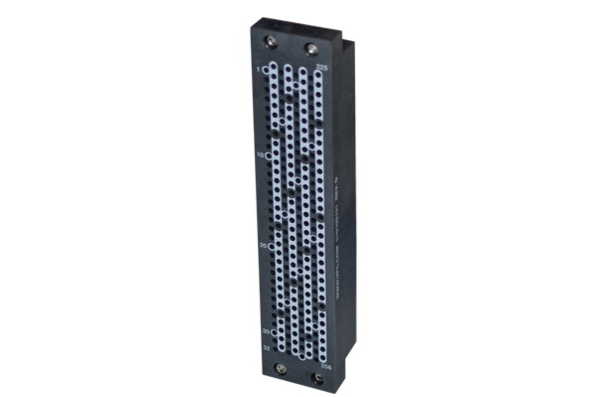

Signal, Module, ITA, TriPaddle, 90 Series, 256 Position
Primary mating module 510104149. (May mate with other modules, as well.)
Accessories and Related Parts
Contact - ITA
Part Number
Description
Signal, Contact, ITA,TriPaddle,7 Amp, 20-24 AWG
Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG
Module - 90 Series Receiver
Signal, Module, Receiver, TriPaddle, 90 Series, 256 Position
Module Accessory Kit
Module Accessory Kit, Quantity 26 4-40 x .560" Socket Head Cap Screws
Strain Relief Plate
Strain Relief Plate, ITA, 90 Series
