Specifications
Material	FR4
Temperature	Operating: -55?C to 125?C Non Operating: -55?C to 140 ?C
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Insulation Resistance	1000 M ? Min.
Available Contact Positions	6 Signal/6 High Power
Module Slots Needed	1

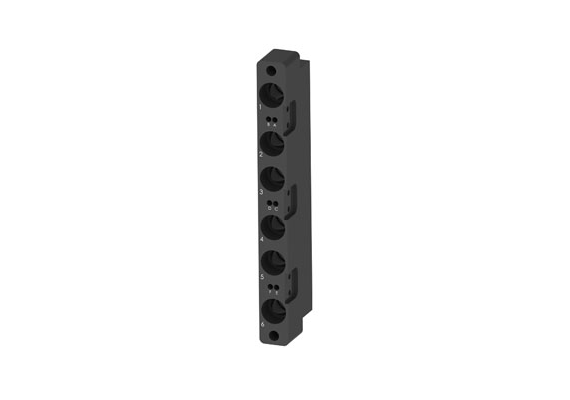

TriPaddle Signal / High Power Module, ITA, 6/6 Position

	Part Number	Description
	610150101	High Power Contact, ITA, 150 Amps, 2 AWG, 30µ" Gold

	Part Number	Description
	510104307	TriPaddle Signal / High Power Module, Receiver, 6/6 Position, Strain Relief Plate Included

Add To Quote
