510104307

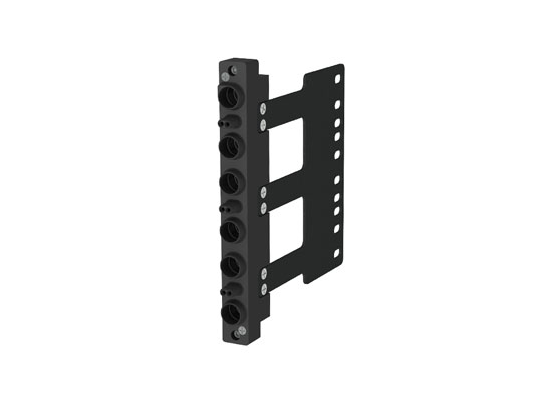

Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate

Specifications
Material FR4
Temperature Operating:
-55°C to 125°C
Non Operating:
-55°C to 140 °C
Dielectric Withstanding Voltage (DWV) 1500 VDC Min.
Available Contact Positions 6 Signal/6 High Power
Module Slots Needed 1

Signal / High Power, Module, Receiver, TriPaddle , 90 Series, 6/6 Positions, incl. Strain Relief plate

 Primary mating module 510108281.

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
