610150101

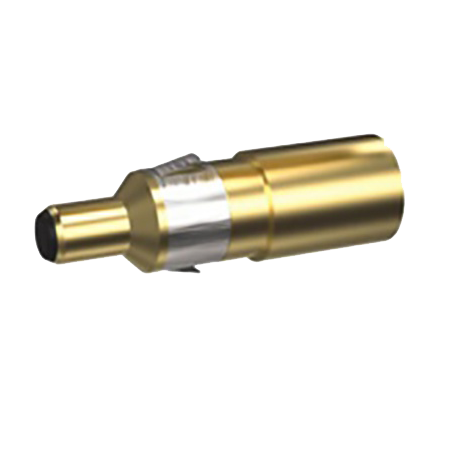

High Power, Contact, ITA, 150 Amps, 2 AWG
| Specifications | |
|---|---|
| Operating Current | 150 Amp Continuous using 2 AWG wire |
| Contact Resistance | 0.35 mOhms |
| Operating Voltage | 600VDC or Peak AC |
| Contact Body |
Cu alloy |
| Contact Plating | 30µ" Au over 100µ" Ni |
| Operating Temperature | -40°C to +125°C |
| T-Rise | +40°C at 150 Amps +30°C at 125 Amps |
| Contact Termination | Crimp |
| Cycle Life | 10,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs) | 1.39 |
High Power, Contact, ITA, 150 Amps, 2 AWG
Primary mating contact 610149101. (May mate with other Receiver contacts, as well.)
