Specifications
Frame Material	Nickel Plated Aluminum
Side Plate Material	Passivated Stainless Steel
Module Positions Needed	2 Slots

Drawing

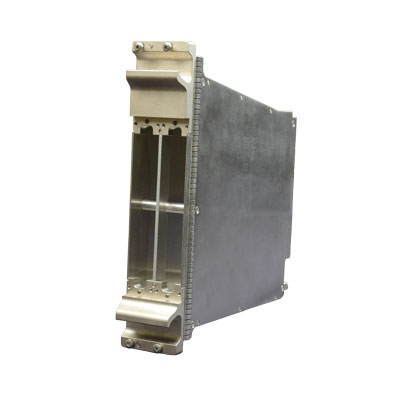

The PXI Pull-Thru Adapter can house discrete wiring that connects from a VPC i2 MX Receiver module to a PXI card. The Adapter has a removable side plate and thumb tabs for easy removal from the Receiver frame. Accepts all i2 MX Receiver modules.

	Part Number	Description
	310120163	Receiver, G40x, 48 Module, for Slide Mount, Includes EMI Protection
	310120186	Receiver, G20x, 28 Module, for Slide Mount, Interchangeable Handle (L or R)
	310120188	Receiver, G20, 20 Module, for Slide Mount, Interchangeable Handle (L or R)
	310130114	Receiver, i2 MX, Modular, EMI
