310120188

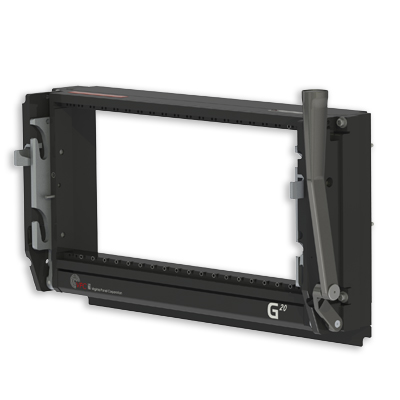

Receiver, G20, 20 Module, for Slide Mount, Interchangeable Handle (L or R)
| Specifications | |
|---|---|
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle | Stainless Steel |
| Available Module Slots | 20 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Max. Weight Support | 80 lbs. @ 12” [36 kg @ 30.5 cm] |
| Max. Mating Force | 1257 lbs. [570.2 kg] |
