510150141

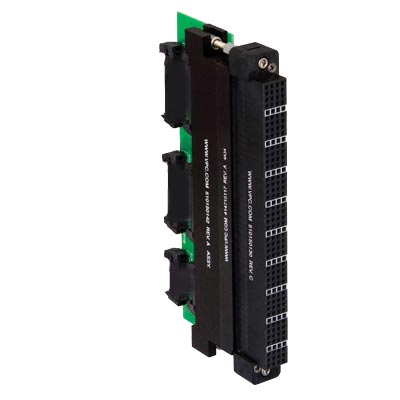

PCB Adapter, Receiver, QuadraPaddle ,192 Position, NI PXI-2532

Specifications
Current Rating 0.5 Amp @ 150 V RMS
Temperature -55° to 105° C
Termination Resistance 50 mOHMs Typical
Insulation Resistance 1000 MOHMs Min.
DWV 500 VAC Min.
Module Slots Needed 1

PCB Adapter, Receiver, QuadraPaddle ,192 Position, NI PXI-2532

This solution works with NI Terminal Blocks: TB-2640, TB-2641, TB-2643 and TB-2644. Part does not include ribbon cables. Please see parts 510150142 and 510150143 for complete solutions with ribbon cables.
