510150148

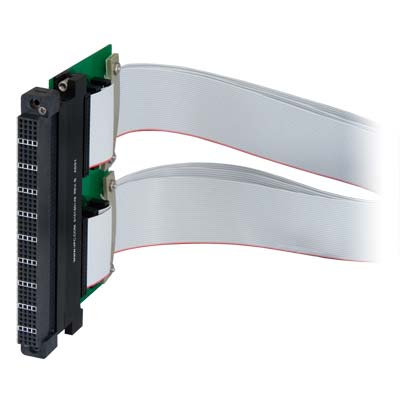

PCB Adapter, Receiver, QuadraPaddle, 192 Position, to NI PXI-2529

Specifications
Current Rating 2 Amps @ 50 V RMS
Temperature -55° to 105° C
Termination Resistance 50 mOHMs Typical
Insulation Resistance 1000 MOHMs Min.
DWV 500 VAC Min.
Module Slots Needed 1

This PCB Adapter was designed specifically for the NI PXI-2529, which uses 160 signals at 2 amps. This PCB Adapter will accommodate one or two NI TB-2634 terminal blocks. If 192 signals or 3 amps are needed for a different application; use # 510 150 155 which has 6 32-pin ribbon cable connectors capable of up to 3 amps each.
