510150154

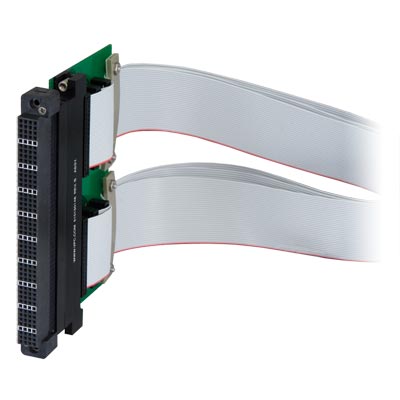

PCB Adapter, Receiver, QuadraPaddle, 192 Position, NI PXI-2529 , 6 x 36" ribbon cables
| Specifications | |
|---|---|
| Current Rating | 2 Amps @ 50 V RMS |
| Temperature | -65° to 105° C |
| Termination Resistance | 50 mOHMs Typical |
| Insulation Resistance | 1000 MOHMs Min. |
| DWV | 500 VAC Min. |
| Module Slots Needed | 1 |
PCB Adapter, Receiver, QuadraPaddle, 192 Position, NI PXI-2529 , 6 x 36" ribbon cables
This PCB adapter was designed specifically for the NI PXI-2529, with 160 signals at 2 amps. This PCB Adapter will accommodate one or two NI TB-2634 terminal blocks. If 192 signals or 3 amps are needed for a different application; use adapter p/n 510150155 which has ribbon cable connectors capable of up to 3 amps each.
This PCB adapter also includes 6 x 32-pin double-ended ribbon cables, .100 (2.54mm) pitch, 36" length- attached to pcb-mounted headers.
