Specifications
Current Rating	3 Amps @ 50 V RMS
Temperature	-55° to 105° C
Termination Resistance	50 mOHMs Typical
Insulation Resistance	1000 MOHMs Min.
DWV	500 VAC Min.
Module Slots Needed	1

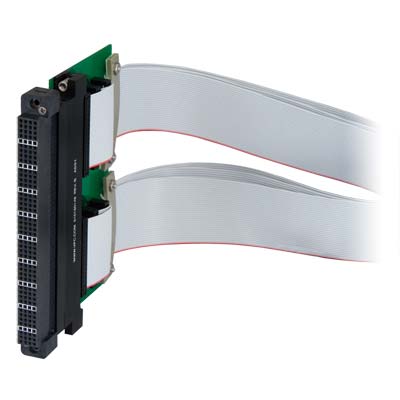

	Part Number	Description
	515109162	Cable Assembly, 32 Pin .100 (2.54mm) Pitch Ribbon Cable, 20" Double Ended
	515109163	Cable Assembly, 32 Pin .100 (2.54mm) Pitch Ribbon Cable, 36" Double Ended

	Part Number	Description
	510151105	Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position
	510151107	Signal Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded with Round Posts (610 138 115)
	510151121	Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Right Angle Contacts for Custom PCB Mounting
	510151124	Signal, Module, ITA, QuadraPaddle, 90 Series, 192 Position, Fully Loaded w/ Square Posts for Wire Wrap with Anti-Rotation (610 138 122)

Add To Quote
