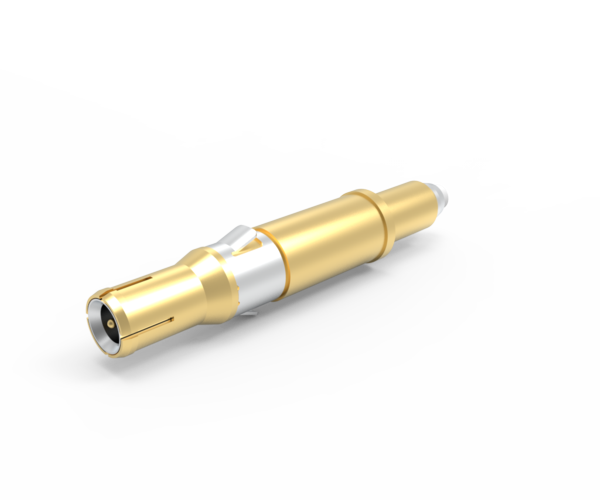

Mini Coax, Contact, ITA, RG178

Mechanical Specifications
Durability 20,000 cycles
Contact Material

Center conductor – BeCu

Shield – Brass

Contact Plating Shield  50µ" Au over 100µ" Ni
Center Conductor – 60µ" Au over 100µ" Ni
Contact Termination Center Conductor - Solder
Shield - Crimp
Insulator PTFE
Mating Force 1.5 lbs max [0.68 kg]
Electrical Specifications
Characteristic Impedance 50Ω
Frequency Range DC to 1 GHz
VSWR ≤ 1.06 @ 1 Ghz
Insertion Loss 1.2 dB @ 1 Ghz
1.02 dB @ 500 Mhz
DWV 1500 VDC Min.
Contact Resistance < 5 milliohms @ 0.5 Amp & always < 10 milliohms
Cable Specifications RG178
Environmental Specifications
Operating Temperature -50C to +105C
Insulation Resistance 1000 MΩ min.
