510161104

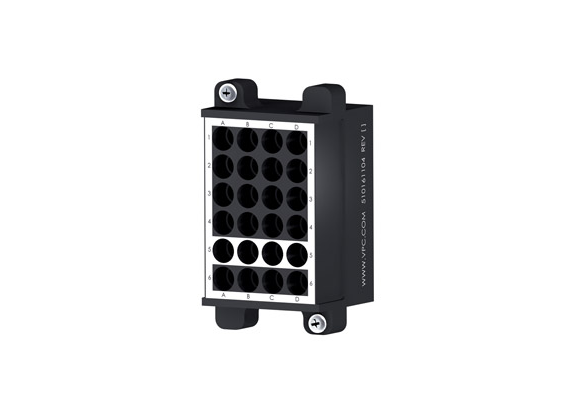

Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position
| Specifications | |
|---|---|
| Material | Black High-Temp Thermoplastic |
| Temperature Range | Operating: -55°C to 125°C Non Operating: -65°C to 220 °C |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC Min. |
| Available Contact Positions | 24 |
| Module Positions Needed | 1 |
Mini Power / Mini Coax, Module, ITA, iCon Series, 24 Position
Primary mating module 510160104. (May mate with other Receiver modules, as well.)
*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.
