610103172

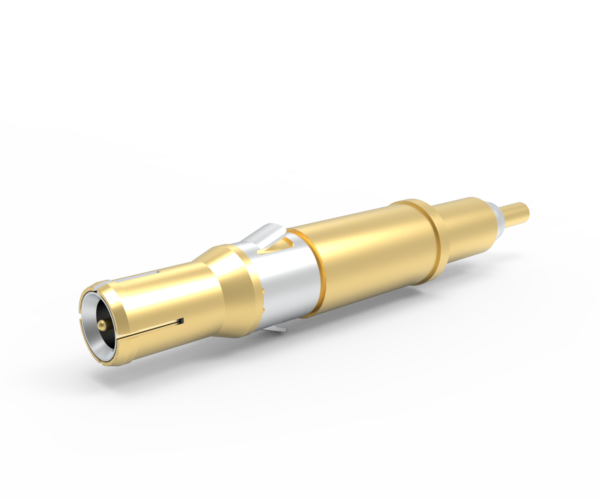

Mini Coax, Contact, ITA, 22 AWG
| Specifications | |
|---|---|
| Characteristic Impedance | 50 Ohms |
| Frequency Range | DC to 1 GHz |
| Insertion Loss | 1.2 dB @ 1 Ghz 1.02 dB @ 500 Mhz |
| VSWR | ≤ 1.06 @ 1 Ghz |
| Operating Voltage & Current | 0.5 Amps Max. Continuous |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC Min. |
| Insulation Resistance | 1000 MOhms Min. |
| Contact Body | Female & Male (RCV & ITA) – shield – brass, center conductor – BeCu |
| Contact Plating | Center conductor – 60µ" Au over 100µ" Ni; Shield – 50µ" Au over 100µ" Ni |
| Contact Termination | Center Conductor – Crimp Shield – Not Connected |
| Cycle Life | 20,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force | 1.02 |
Mini Coax, Contact, ITA, 22 AWG
Primary mating contact 610104160. (May mate with other Receiver contacts, as well.)
