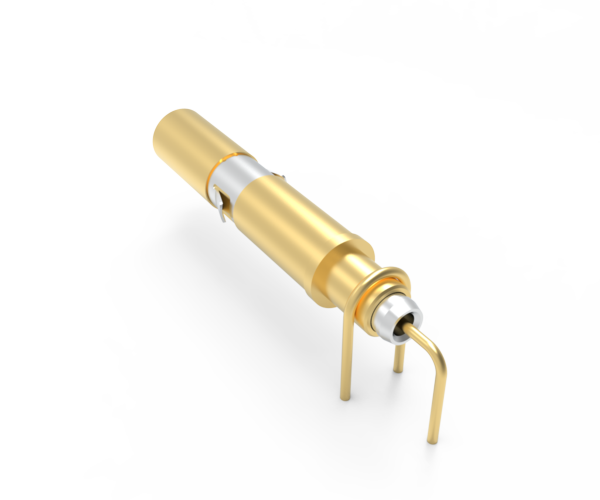

Mini Coax, Contact, Receiver, Right Angle for PCB Mounting
| Mechanical Specifications | |
|---|---|
| Durability | 20,000 cycles |
| Contact Material | Shield – Brass Center Conductor – BeCu |
| Contact Plating | Shield – 50µ" Au over 100µ" Ni Center Conductor – 60µ" Au over 100µ" Ni |
| Contact Termination | PCB TH Solder |
| Insulator | PTFE |
| Mating Force | 1.5 lbs max [0.68 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 50Ω |
| Frequency Range | DC to 1 GHz |
| VSWR | 1.445 @ 1 GHz |
| Insertion Loss | -0.885 db @ 1 GHz |
| DWV | 1500 VDC min. |
| Contact Resistance | 5mΩ max. |
| Environmental Specifications | |
| Operating Temperature | -50°C to +105°C |
| Insulation Resistance | 1000 MΩ min. |
