610103150

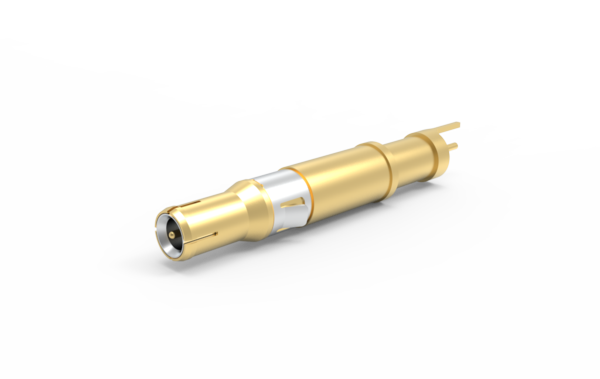

Mini Coax, Contact, ITA, one .025" Round Post/ one .02" Square Post/ .075" Spacing
| Specifications | |
|---|---|
| Characteristic Impedance | 50 Ohms |
| Frequency Range | DC to 1 GHz |
| Insertion Loss | 1.2 dB @ 1 Ghz 1.02 dB @ 500 Mhz |
| VSWR | ≤ 1.06 @ 1 Ghz |
| Operating Voltage & Current | 0.5 Amps Max. Continuous |
| Mating Force | 1.5 lbs Max [0.68Kg] |
| Dielectric Withstanding Voltage (DWV) | 1500 VDC Min. |
| Insulation Resistance | 1000 MOhms Min. |
| Contact Body | Shield – Brass Center Conductor – BeCu |
| Contact Plating | Shield – 50µ" Au over 100µ" Ni Center conductor – 60µ" Au over 100µ" Ni |
| Cycle Life | 20,000 Cycles |
