610103115

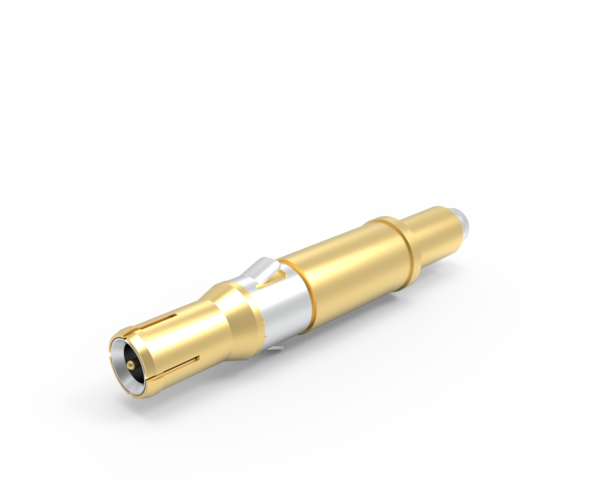

Mini Coax, Contact, ITA, RG316
| Mechanical Specifications | |
|---|---|
| Durability | 20,000 cycles |
| Contact Material | Shield – Brass Center Conductor – BeCu |
| Contact Plating | Shield – 30µ" Au over 100µ" Ni Center Conductor – 60µ" Au over 100µ" Ni |
| Contact Termination | Center Conductor - Solder Shield - Crimp |
| Insulator | PTFE |
| Mating Force | 1.5 lbs max [0.68 kg] |
| Electrical Specifications | |
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC to 1 GHz |
| VSWR | ≤ 1.06 @ 1 Ghz |
| Insertion Loss | 1.2 dB @ 1 Ghz 1.02 dB @ 500 Mhz |
| DWV | 1500 VDC Min. |
| Contact Resistance | < 5 mΩ @ 0.5 Amp & always < 10 mΩ |
| Cable Specifications | RG316 |
| Environmental Specifications | |
| Operating Temperature | -50°C to +105°C |
| Insulation Resistance | 1000 MΩ min. |
Mini Coax Contact, ITA, RG316
Primary mating contact 610104114. (May mate with other Receiver contacts, as well.)
