610131101

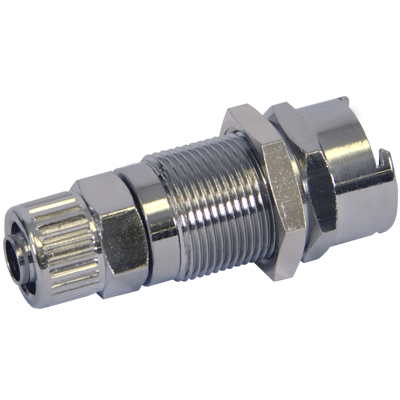

Pneumatic Contact, Receiver, Ferruless Fitting, for 3/8" OD, 1/4" [9.5 x 6 mm] ID Tubing

Specifications
Pressure/Vacuum Rated 250 psi (17.3 Bar)
Operating Temperatures -40°F to 180°F
(-40°C to 82°C)
Contact Body Chrome Plated Brass
Cycle Life 20,000 cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
AVG Mating Force (lbs.) 4.94

Pneumatic Connectors are available with either ferruless polytube fittings (3/8" tubing OD) or hose barb (3/8" tubing ID). Ferrules fittings securely attach tubing without hose clamp - which is recommended for the hose barb type (hose clamp not included). The 1/8" ID connectors are available with hose barb.
