610132101

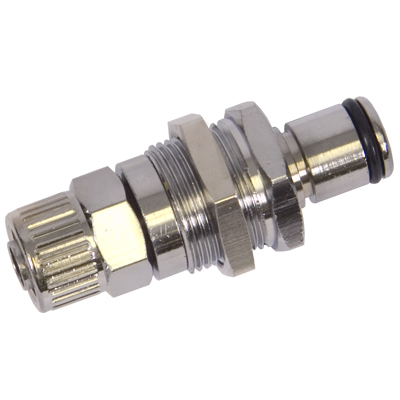

Pneumatic Contact, ITA, Ferruless Fitting, for 3/8" OD, 1/4" [9.5 x 6 mm] ID Tubing
| Specifications | |
|---|---|
| Pressure/Vacuum Rated | 250 psi (17.3 Bar) |
| Operating Temperatures | -40°F to 180°F (-40°C to 82°C) |
| Contact Body | Chrome Plated Brass |
| Cycle Life | 20,000 cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force (lbs.) | 4.94 |
Pneumatic Contact, ITA, Ferruless Fitting, for 3/8" OD, 1/4" [9.5 x 6 mm] ID Tubing
Primary mating contact 610131101.
Pneumatic Connectors are available with either ferruless polytube fittings (3/8" tubing OD) or hose barb (3/8" tubing ID). Ferruless fittings securely attach tubing without hose clamp - which is recommended for the hose barb type (hose clamp not included). The 1/8" ID connectors are available with hose barb.
