Drawing

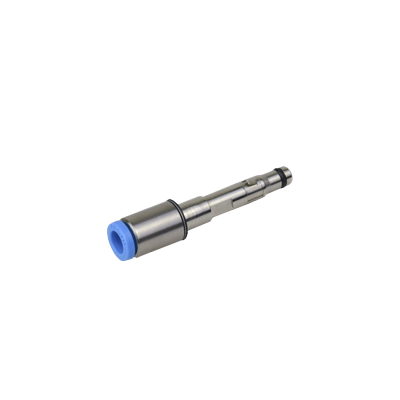

Mini Pneumatic, Contact, ITA, Push-in Fitting, for 4 mm OD Tubing

Please note: This contact cannot be used to fully populate all 16 positions of the VPC TriPaddle Signal/Mini Coax Module p/n 510108210. For further assistance please contact a Field Application Engineer.

	Part Number	Description
	610131111	Mini Pneumatic, Contact, Receiver, Push-in Fitting, for 4 mm OD Tubing

	Part Number	Description
	510161102	QuadraPaddle Signal / Mini Power/ Mini Coax, Module, ITA, iCon, 100/8 Position
	510161103	TriPaddle Signal / Mini Power/ Mini Coax, Module, ITA, iCon, 64/8 Position

	Part Number	Description
	510108111	Mini Coax, Module, ITA, 90 Series, 19 Position
	510108115	Mini Power, Module, ITA, 90 Series, 19 Position
	510108132	Mini Coax, Module, ITA, 76 Position
	510108178	TriPaddle Signal/Mini Power, Module, ITA, 90 Series, 16/16 Position
	510108210	TriPaddle Signal / Mini Coax, Module, ITA, 90 Series, 16/16 Position

	Part Number	Description
	910112104	Tool, Extraction, Mini Power, Mini Coaxial, Mini Pneumatic, Receiver and ITA

Add To Quote
