Specifications
Material	Ryton R-7
Temperature	Operating • -55° C to 125° C Non Operating • -55° C to 140° C
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Available Contact Positions	19
Module Slots Needed	1

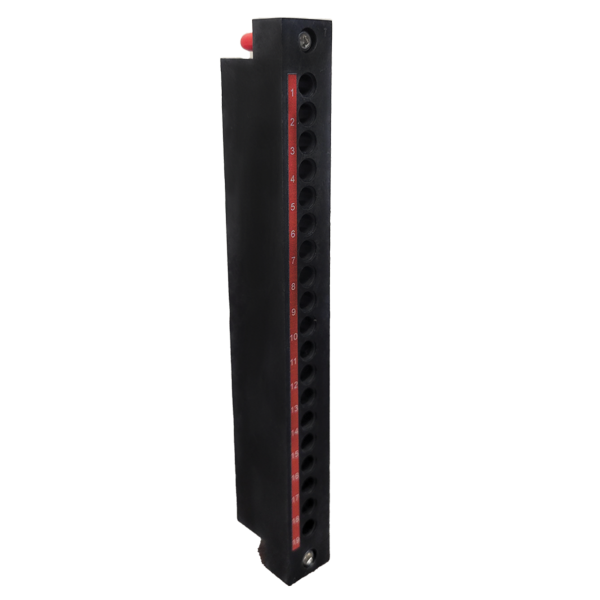

Mini Power, Module, ITA, 90 Series, 19 Position

These mini power modules can withstand temperatures up to 140 °C. The faces of the power modules are screened with a red strip to indicate power.

	Part Number	Description
	610115124	Mini Power, Contact, ITA, 65 Amp, 8 AWG
	610115125	Mini Power Contact, ITA, 65 Amp, 8 AWG
	610132106	Mini Pneumatic, Contact, ITA, Hose Barb for 1/8" [3.2 mm] ID Tubing, Fits Mini Coax/Mini Power modules
	610132110	Mini Pneumatic, Contact, ITA, Plug, Fits Mini Coax/ Mini Power modules
	610132111	Mini Pneumatic, Contact, ITA, Push-in Fitting, for 4 mm OD Tubing
	610132112	Mini Pneumatic, Contact, ITA, Push-in Fitting, for 6 mm OD Tubing

	Part Number	Description
	510104123	Mini Power, Module, Receiver, 90 Series, 19 Position

	Part Number	Description
	510109303	Module Accessory Kit, Quantity 26 4-40 x .560" Socket Head Cap Screws

	Part Number	Description
	510109296	Strain Relief Plate, ITA, 90 Series
