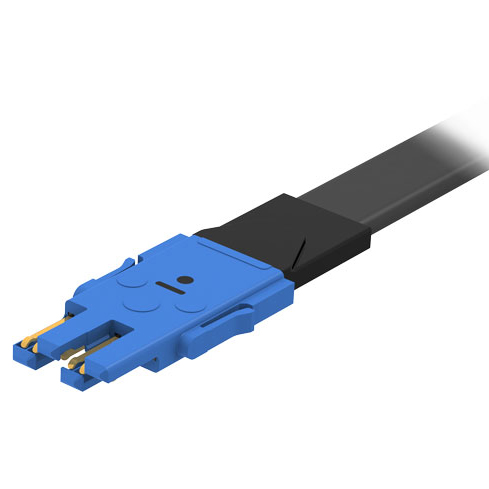

VTAC Patchcords

VTAC Patchcords

VTAC patchcords are renowned for their signal integrity and speed. VTAC’s ground-signal scheme, precision-welding, and hermaphroditic connector designs help to reduce signal degradation, even in the most demanding test environments.

Why VTAC Patchcords?

  • Exceptionally user-friendly features- no tools needed for assembly
  • Used for high bandwidth data transmission and signal integrity testing
  • Compatible with a variety of COTS digital protocols, such as:
    HDMI, USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1), Cat 6 and more
  • High data capability ensures the max data rate possible with numerous commercial high speed digital protocols
  • Hermaphroditic design and high cycle life makes it perfect for floor stock
  • Ideal for use in multiple industries



Below are just of some of what VPC has to offer and in some lengths. Other lengths are available. Please consult individual product drawings for other available lengths.

For more options, contact a Field Application Engineer who can help design a solution specific to your need.

Please note: VTAC patchcords using thicker diameter wire and sleeving, may require a module loading pattern that includes extra slot spacing to prevent wire bend and pressure. See the VTAC User Manual for more information.

Patchcord - ITA

  • 7-141702141-036
    VTAC, Patchcord, ITA, 36", VTAC, DACAR 535, Double Ended
    7-141702731-036
    VTAC, Patchcord, ITA, 36", VTAC, DACAR 535, to Rosenberger
    7-141703141-036
    VTAC, Patchcord, ITA, 36", VTAC, DACAR 636, Double Ended
    7-141703731-036
    VTAC, Patchcord, ITA, 36", VTAC, DACAR 636, to Rosenberger
    7-141703731-072
    VTAC, Patchcord, ITA, 72", VTAC, DACAR 636, to Rosenberger
    7-141705694-036
    VTAC, Patchcord, ITA, 36", VTAC, CAT6A FTP, to RJ45 PLUG
    7-141706735-036
    VTAC, Patchcord, ITA, 36", VTAC, DVI-D, to DVI-D Male
    7-141706735-072
    VTAC, Patchcord, ITA, 72", VTAC, DVI-D, to DVI-D Male
    7-141715757-018
    VTAC, Patchcord, ITA, 18", VTAC to USB-C
    7-141861141-036
    VTAC, Patchcord, ITA, 36", Twinax, VTAC, Double Ended
    7-141861141-072
    VTAC, Patchcord, ITA, 72", Twinax, VTAC, Double Ended
    7-141861525-036
    VTAC, Patchcord, ITA, 36", VTAC, Twinax, to SMA
    7-141877141-036
    VTAC, Patchcord, ITA, 36", VTAC, DVI-D, Double Ended
    7-141890141-036
    VTAC, Patchcord, ITA, 36", VTAC, USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) Type A , Double Ended
    7-141890690-036
    VTAC, Patchcord, ITA, 36", VTAC, USB 3.0, to USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) Type A Male
    7-141890691-036
    VTAC, Patchcord, ITA, 36", VTAC, USB 3.0, to USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) Type A Female
    7-141891141-036
    VTAC, Patchcord, ITA, 36", VTAC, HDMI, Double Ended
    7-141891693-036
    VTAC, Patchcord, ITA, 36",  VTAC, HDMI, to ITA, HDMI
    7-141893141-036
    VTAC, Patchcord, ITA, 36", VTAC, CAT6, Double Ended
    7-141893694-036
    VTAC, Patchcord, ITA, 36", VTAC, CAT6, to RJ45
    7-141895141-036
    VTAC, Patchcord, ITA, 36", VTAC, 8 Conductor 24 AWG, Double Ended
    7-141897726-036
    VTAC, Patchord, ITA, 36", VTAC, Display Port, to 20-pin Display Port
    7-141897726-072
    VTAC, Patchord, ITA, 36", VTAC, Display Port, to 20-pin Display Port
    7-141899730-036
    VTAC, Patchcord, ITA, 36", VTAC, eSATA, to eSATA 7-pin Male

Patchcord - ITA/RCV

  • 7-140732000-036
    VTAC, Patchcord, ITA or RCV, 36", VTAC, 26 AWG Ribbon, to Flying Leads
    7-140732000-072
    VTAC, Patchcord, ITA or RCV, 72", VTAC, 26 AWG Ribbon, to Flying Leads
    7-140732140-036
    VTAC, Patchcord, ITA or RCV, 36", VTAC, 26 AWG Ribbon, Double Ended
    7-140732140-072
    VTAC, Patchcord, ITA or RCV, 72", VTAC, 26 AWG Ribbon, Double Ended
    7-141702142-036
    VTAC, Patchcord, ITA, 36", VTAC, DACAR 535, to Receiver, VTAC
    7-141705142-036
    VTAC, Patchcord, ITA, 36", VTAC, CAT6A, to Receiver, VTAC
    7-141861000-036
    VTAC, Patchcord, ITA or RCV, 36", VTAC, 26AWG Twinax, to Flying Leads
    7-141861000-072
    VTAC, Patchcord, ITA or RCV, 72", VTAC, 26AWG Twinax, to Flying Leads
    7-141861142-036
    VTAC, Patchcord, ITA, 36", VTAC, Twinax, to Receiver, VTAC
    7-141861142-072
    VTAC, Patchcord, ITA, 72", VTAC, Twinax, to Receiver, VTAC
    7-141891142-036
    VTAC, Patchcord, ITA, 36", VTAC, HDMI, to Receiver, VTAC
    7-141895142-036
    VTAC, Patchcord, ITA, 36", VTAC, 8 Conductor 24 AWG, to Receiver, VTAC
    7-145178000-036
    VTAC, Patchcord, ITA or RCV, 36", VTAC, RG178, to Flying Leads
    7-145178000-072
    VTAC, Patchcord, ITA or RCV, 72", VTAC, RG178, to Flying Leads
    7-145178146-036
    VTAC, Patchcord, ITA, 36", VTAC, RG 178, to Receiver, VTAC
    740KIT001
    VTAC, Patchcord, Kit- Receiver & ITA, 36", VTAC to USB-C

Patchcord - Receiver

  • 7-142186142-036
    VTAC, Patchcord, Receiver, 36", VTAC, Twinax, Double Ended
    7-142702142-036
    VTAC, Patchcord, Receiver, 36", VTAC, DACAR 535, Double Ended
    7-142702731-036
    VTAC, Patchcord, Receiver, 36",  VTAC, DACAR 535, to Rosenberger
    7-142702731-072
    VTAC, Patchcord, Receiver, 72",  VTAC, DACAR 535, to Rosenberger
    7-142703142-036
    VTAC, Patchcord, Receiver, 36", VTAC, DACAR 636, Double Ended
    7-142703731-036
    VTAC, Patchcord, Receiver,  36",  VTAC,  DACAR 636, to Rosenberger
    7-142703731-072
    VTAC, Patchcord, Receiver,  72",  VTAC,  DACAR 636, to Rosenberger
    7-142705142-036
    VTAC, Patchcord, Receiver, 36", VTAC, CAT6A FTP, Double Ended
    7-142705694-036
    VTAC, Patchcord, Receiver, 36", VTAC, CAT6A FTP, to RJ45 PLUG
    7-142706735-036
    VTAC, Patchcord, Receiver, 36", VTAC, DVI-D, to DVI-D Male
    7-142706735-072
    VTAC, Patchcord, Receiver, 72", VTAC, DVI-D, to DVI-D Male
    7-142715757-018
    VTAC, Patchcord, Receiver , 18", VTAC to USB-C
    7-142716763-036
    VTAC, Patchcord, Receiver, 36", VTAC, 2x 1000Base-T1 UTP, to 1 Port MateNet, 1 Slot
    7-142716765-036
    VTAC, Patchcord, Receiver, 36", VTAC, 2x 1000Base-T1 UTP,  to H-MTD Cable Jack, 1 Slot
    7-142716765-072
    VTAC Patchcord, Receiver, 72", VTAC, 2x 1000Base-T1 UTP wire H-MTD Cable Jack, 1 Slot
    7-142861142-036
    VTAC, Patchcord, Receiver, 36", VTAC, Twinax, Double Ended
    7-142861142-072
    VTAC, Patchcord, Receiver, 72", VTAC, Twinax, Double Ended
    7-142890690-036
    VTAC, Patchcord, Receiver, 36", VTAC, USB 3.0, to USB 5 Gbps (USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1) Type A Male
    7-142891693-036
    VTAC, Patchcord, Receiver,  36",  VTAC, HDMI, to ITA, HDMI
    7-142891693-072
    VTAC, Patchcord, Receiver, 72",  VTAC, to HDMI
    7-142893142-036
    VTAC, Patchcord, Receiver, 36", VTAC, CAT6, Double Ended
    7-142893694-036
    VTAC, Patchcord, Receiver, 36", VTAC, CAT6, to RJ45
    7-142895142-036
    VTAC, Patchcord, Receiver, 36", VTAC, 8 Conductor 24 AWG, Double Ended
    7-142896722-036
    VTAC, Patchcord, Receiver, 36", VTAC, Mini SAS, to Mini SAS HD Plug
    7-142899730-036
    VTAC, Patchcord, Receiver, 36", VTAC, eSATA, to eSATA 7-pin Male

Tool- Extraction

  • 910112130
    Tool, Extraction, VTAC, Receiver and ITA
