310104114

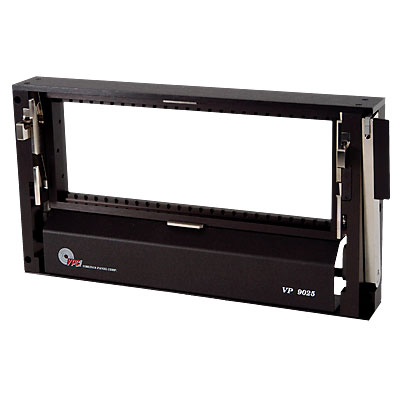

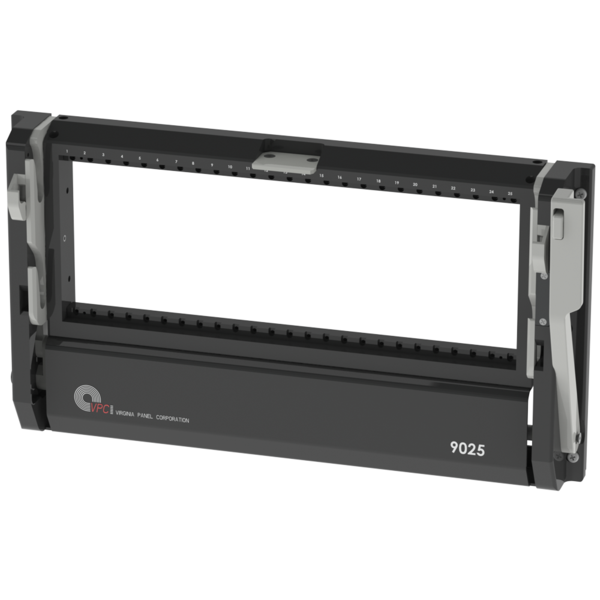

Receiver, 9025, 25 Module, Single Tier
| Specifications | |
|---|---|
| Weight | 15.60 lbs. [7.08 kg] |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 25 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55° C to 85° C |
| Max. Weight Support | 80 lbs. @ 12 ” [36 kg @ 30.5 cm] |
| Max. Mating Force | 710 lbs. [322.1 kg] |
This 25 Module Receiver is designed to fit into a standard 19” rack. It is equipped with a locking handle to ensure contacts are engaged. A standard integrated microswitch shuts off power when the ITA disengages from the receiver.
