310104318
Receiver, G6, 6 Module
| Specifications | |
|---|---|
| Weight | 1.94 lbs. [.88 KG] |
| Side Material | ABS-Polycarbonate Blend |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 6 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Maximum Weight Support | 25 lbs. @ 6” (11 Kg @ 15.25 cm) |
| Max Force (lbs) | 630 |

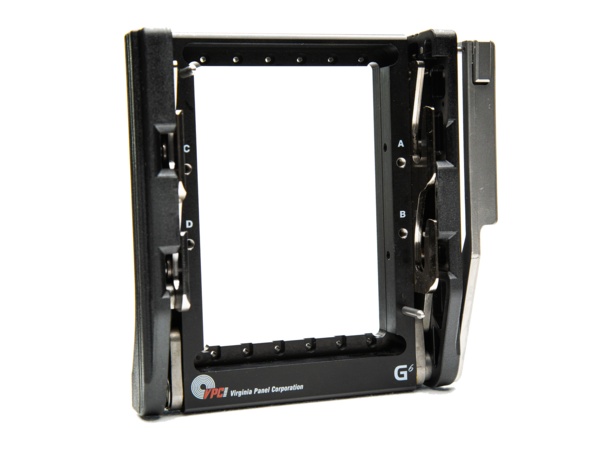

Receiver, G6, 6 Module
The G6 Receiver includes a keying feature, locking handle and nickel-plated steel slides that engage up to 1,440 signal contacts in a 6-module configuration- all in a compact and rugged design.
