310104335

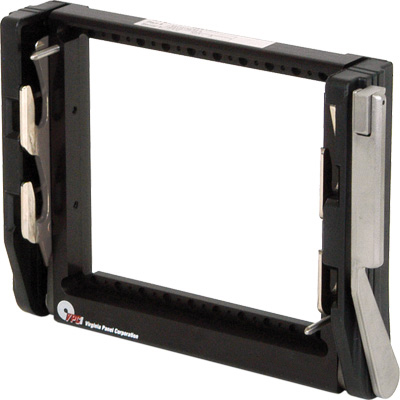

Receiver, G10, 10 Module, Includes Microswitch
| Specifications | |
|---|---|
| Weight | 2.20 lbs. [1.0 kg] |
| Side Material | ABS-Polycarbonate Blend |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch | Stainless Steel |
| Available Module Slots | 10 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Max. Weight Support | 25 lbs. @ 6" [11 kg @ 15.25 cm] |
| Max. Mating Force | 630 lbs. [285.8 kg] |
Receiver, G10, 10 Module, Includes Microswitch
The G10 Receiver includes a keying feature, microswitch, locking handle and nickel-plated steel slides in a 10-module configuration- all in a compact and rugged design.
Use of keying feature requires purchase of keying pin kit (p/n 310118112).
Compatible with VPC 90-Series modules.
