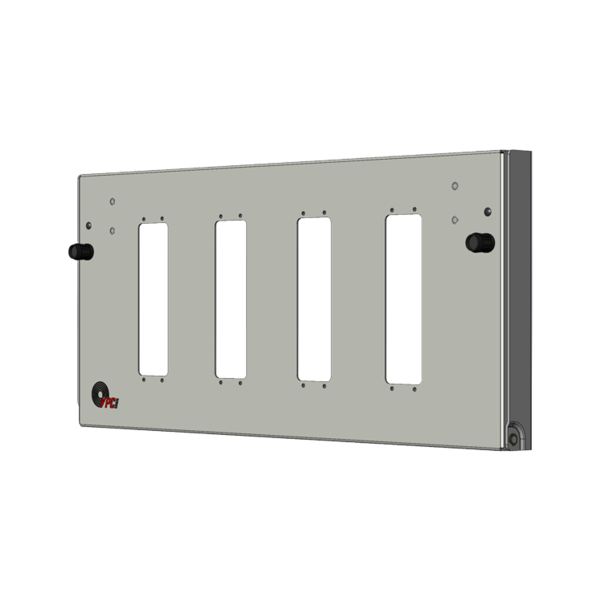

Vertical Hinged Mounting Frame, iCon, 5U, 4 Positions
The 5U Vertical hinged Mounting Frame mounts to standard 19" racks and hinges open to allow access to wiring between the instruments and VPC Receiver. The 4 cutouts are spaced evenly across the panel. iCon cover plate sold separately (310113467).
Accessories and Related Parts
Accessory
Part Number
Description
Cover Plate, iCon, for Mounting Panel Cutouts, Painted Gray
PXI Chassis Mount Kit
Mounting Flange Kit, Chassis, NI PXI-1044/1045/1065/1085, PXIe-1065/1075 & PXIe-1095
Receiver
Receiver, iCon, with Protective Cover
Receiver, iCon EMI , with Protective Cover and Strain Relief
Receiver, iCon, Reverse Module Configuration for iCon ITA Modules, with Protective Cover
