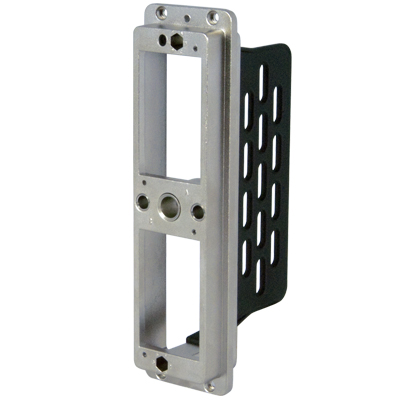

Receiver, iCon EMI , with Protective Cover and Strain Relief

Weight .20 lbs [.09 Kg] without protective cover
Frame Material Nickel Plated Aluminum Alloy
Hardware Material Stainless Steel Alloy
Protective Cover Material Black Thermoplastic
Available Module Slots 2 Positions
Cycle Life 10,000 Cycles
Shock 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27)
Vibration Random 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28)
Vibration Sine 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28)
Temperature -55° C to 125° C

Includes all of the standard features of the iCon, in addition to Electro-Magnetic Interference (EMI) protection. An earth ground terminal is included on the and a "mate first, break last" feature connects the earth ground circuit. The earth ground terminal on the strain relief prevents user shock and injury.
