310123101

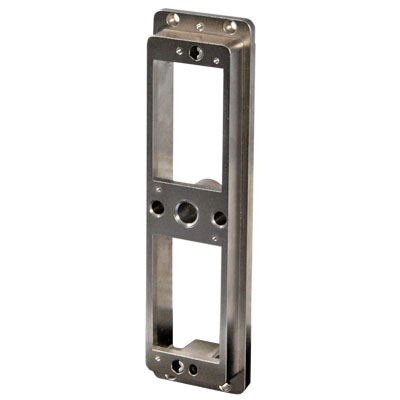

Receiver, iCon, with Protective Cover
| Specifications | |
|---|---|
| Weight | .20 lbs [.09 Kg] without protective cover |
| Frame Material | Nickel Plated Aluminum Alloy |
| Hardware Material | Stainless Steel Alloy |
| Protective Cover Material | Black Thermoplastic |
| Available Module Slots | 2 Positions |
| Cycle Life | 10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 125° C |
iCon accepts two modules and allows a variety of signal, power and coaxial connections. A protective cover is included with the receiver, and other accessories, such as keying pin kits and strain relief, are available.
