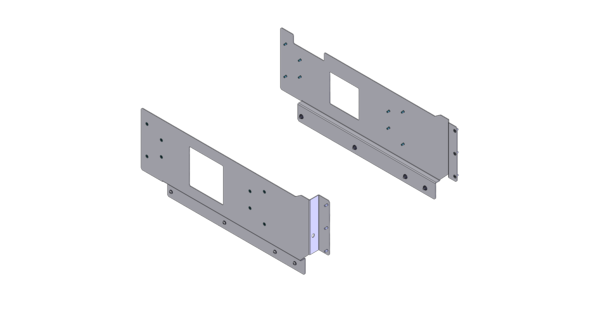

Mounting Flange Kit, G40X, Receiver, NI PXI 1084/1095

Includes hardware required to mount flanges to the G40X EMI receiver, slide kit and NI PXI 1084/1095

	Part Number	Description
	310120163	Receiver, G40x, 48 Module, For Slide Mount, Includes EMI Protection

	Part Number	Description
	310113411	30" Slide Kit, Fits 30"-32" Deep Racks, Supports 180 lbs.
	310113451	28" Slide Kit, Fits 28"-30" Deep Racks, Supports 180 lbs.
	310113500	36" Slide Kit, Fits 36"-38" Deep Racks, Supports 180 lbs.

Add To Quote
