Manual

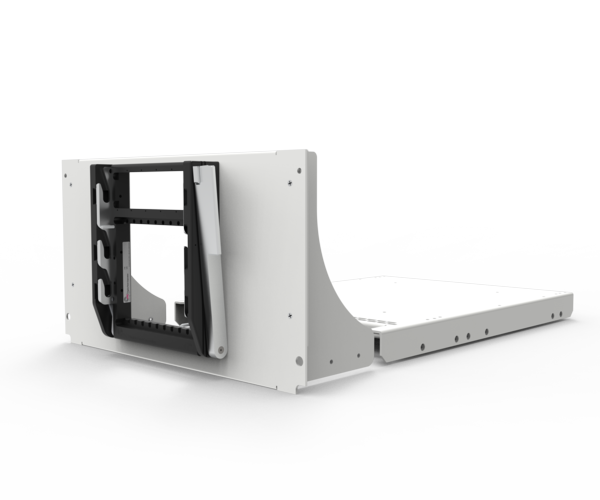

Mounting Kit for Slide Configurations, G10x, Receiver

Kit only. Does not include receiver. Includes parts needed for mounting G10x receiver with slide configuration (does not include slides). Includes: Mounting Flanges, G10x Mounting plate, instrument Bracket.

	Part Number	Description
	310120208	Receiver, G10X, 15 Module, for Slide Mounting (requires Slide Kit)

	Part Number	Description
	310113409	20" Slide Kit, Fits 18"-22" Deep Racks, Supports 180 lbs.
	310113410	24" Slide Kit, Fits 22"-26" Deep Racks, Supports 180 lbs.
	310113411	30" Slide Kit, Fits 28"-32" Deep Racks, Supports 180 lbs.
	310113451	28" Slide Kit, Fits 26"-30" Deep Racks, Supports 180 lbs.
	310113500	36" Slide Kit, Fits 34"-38" Deep Racks, Supports 180 lbs.

Add To Quote
