310130107

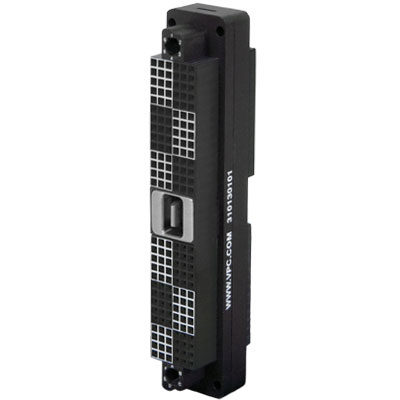

Receiver, i2 Micro iCon, 168 Position, Unloaded, for Twin Female QuadraPaddle Contacts
| Specifications | |
|---|---|
| Weight | .14 lbs [.06 Kg] |
| Frame Material | Glass Reinforced Thermoplastic |
| Hardware Material | Stainless Steel Alloy |
| Contact Positions | 168 |
| Cycle Life | 10,000 Cycles |
| Shock | 50 g's (Condition A MIL-STD-1344, Method 2004/EIA364-27) |
| Vibration Random | 11.6 g's RMS (Condition V PSD 0.1 MIL-STD-1344, Method 2005/EIA364-28) |
| Vibration Sine | 15 g's (Condition III MIL-STD-1344, Method 2005/EIA364-28) |
| Temperature | -55° C to 105° C |
Receiver, i2 Micro iCon, 168 Position, Unloaded, for Twin Female QuadraPaddle Contacts
This i2 Micro iCon receiver comes ready to load with twin female contacts (610138200)
