610138200

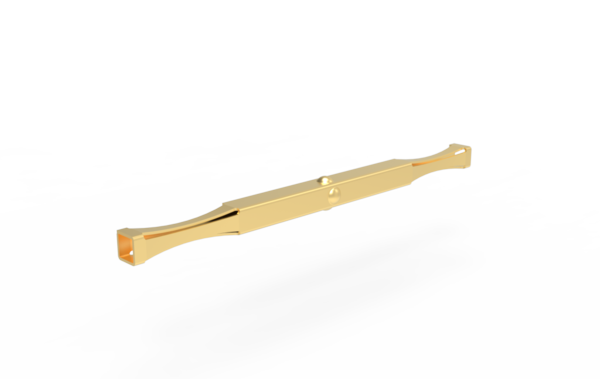

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female

Specifications
Operating Voltage & Current 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4
Contact Resistance 25 mOhms Max.
Measured at 50 mV @ 100 mA
Dielectric Withstanding
Voltage (DWV)
1500 VDC Min.
Insulation Resistance 5000 MOhms Min.
Contact Body BeCu/PhBrz
Contact Plating 30µ” Au over 100µ” Ni
Cycle Life 20,000 Cycles
RoHS Directive 2011/65/EU Status Compliant
REACH Article 33 Status Compliant
ECHA Article 59 of Reach Regulation Compliant
Avg Mating Force(lbs) 0.24

Signal, Contact, Receiver, QuadraPaddle, 5 Amp, Twin Female
