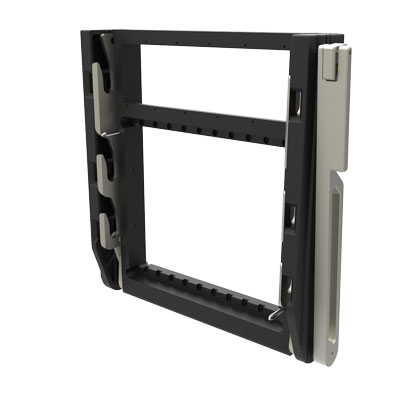

Receiver, G10x, 15 Module
Specifications | |
---|---|
Weight | 3.10 lbs. [1.41 Kg] |
Side Material | ABS-Polycarbonate blend |
Frame Material | Black anodized aluminum |
Slide Material | Nickel plated steel |
Linkage, Handle, Latch | Stainless steel |
Available 90 Series Module Positions | 10 |
Available iCon Module Positions | 5 |
Cycle Life | 20,000 cycles |
Temperature | -55ºC to 85ºC |
Max. Weight Support | 25 lbs. @ 6" [11 Kg @ 15.25 cm] |
Max. Mating Force | 850 lbs. [285.8 Kg] |
RoHS Directive 2011/65/EU Status | Compliant |
REACH Article 33 Status | Compliant |
ECHA Article 59 of Reach Regulation | Compliant |
The adaptable G10x receiver integrates a wide variety of I/O options in various module configurations that allow engagment of up to 3,200 signal contacts. The G10x receiver also works with G10 ITAs and the G10x ITA for increased functionality.
