310120146

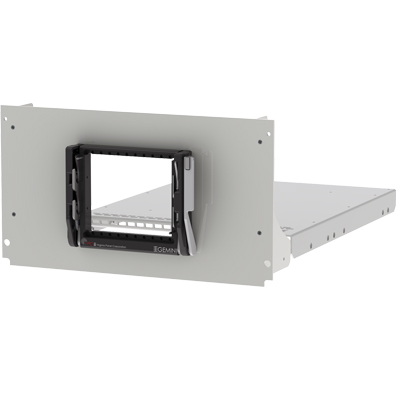

Receiver, G10, 10 Module, for Slide Mounting (slide kit required)
| Specifications | |
|---|---|
| Weight | 11.5 lbs. [5.22 kg] |
| Side Material | ABS-Polycarbonate Blend |
| Frame Material | Anodized Aluminum |
| Slide Material | Nickel Plated Steel |
| Linkage, Handle, Latch Material | Stainless Steel |
| Mounting Plate, Mounting Flange, Instrument Bracket Material | Aluminum |
| Available Module Slots | 10 Positions |
| Cycle Life | 20,000 Cycles |
| Temperature | -55º C to 85º C |
| Max. Weight Support | 25 lbs. @ 6" [11 kg @ 15.25 cm] |
| Max. Mating Force | 630 lbs. [285.8 kg] |
Receiver, G10, 10 Module, with Slide Mounting (slide kit required)
*Please note: Consult procedure sheet/user manual for information regarding slight slide mechanism bracket protrusion downward into next U height on test rack on both sides of receiver.
