410104769

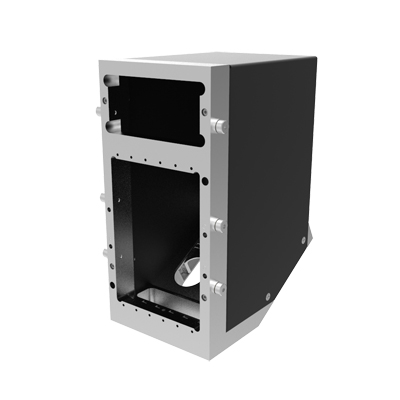

ITA, G6x, 9 Module, Includes EMI Removable Backshell
| Specifications | |
|---|---|
| Weight | 2.5 lbs. [1.13 KG] |
| Frame Material | Clear chromated aluminum |
| Cover Material | Black powdercoated aluminum |
| Available 90 Series Module Positions | 6 |
| Available iCon Module Positions | 3 |
| Cycle Life | 20,000 Cycles |
| Temperature | -55º C to 85º C |
| Max. Mating Force | 850 lbs. [285.8 Kg] |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
ITA, G6x, 9 Module, Includes EMI Removable Backshell
The adaptable G6x ITA integrates a wide variety of I/O options in various module configurations that allow engagement of up to 1,920 signal contacts. The G6x ITA includes has a removable backshell to help reduce EMI. The frame includes a keying feature.
