310104481
Receiver, G6x, 9 Module
| Specifications | |
|---|---|
| Weight | 2.5 lbs. [1.13 Kg] |
| Side Material | ABS-Polycarbonate blend |
| Frame Material | Black anodized aluminum |
| Slide Material | Nickel plated steel |
| Linkage, Handle, Latch | Stainless steel |
| Available 90 Series Module Positions | 6 |
| Available iCon Module Positions | 3 |
| Cycle Life | 20,000 Cycles |
| Temperature | -55ºC to 85ºC |
| Maximum Weight Support | 25 lbs. @ 6” (11 Kg @ 15.25 cm) |
| Max Mating Force (lbs) | 850 |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |

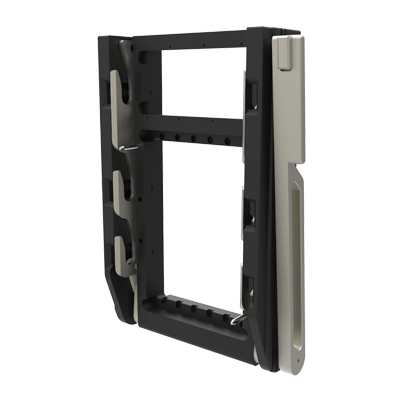

Receiver, G6x, 9 Module
The G6x Receiver includes a keying feature, locking handle and nickel-plated steel slides that engage up to 1,920 signal contacts in a 9-module configuration- all in a compact and rugged design. It also compatible with G6 ITAs for increased functionality.
Compatible with 6 x VPC 90-Series modules and 3 x VPC iCon Series modules.
