510104128

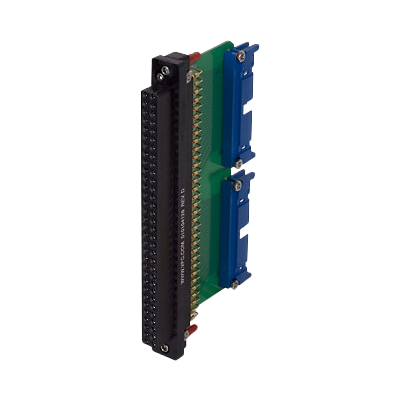

PCB Adapter, Receiver, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors
| Specifications | |
|---|---|
| Current Rating | 1 Amp @ 150 V RMS |
| Temperature | -55° to 105° C |
| Termination Resistance | 50 mOHMs typical |
| Insulation Resistance | 1000 MOHMs Min. |
| DWV | 500 V RMS |
| Connector 1 | 34 Pin Ribbon Cable |
| Connector 2 | 34 Pin Ribbon Cable |
| Module Slots Needed | 1 |
The 64 Pin Signal Receiver Module is made from Ryton® R-7 and will withstand temperatures up to 220°C. The 64 Pin Signal ITA Module is made from engineered resin and will withstand temperatures up to 150°C. Both the ITA and Receiver Modules have molded nomenclature.
