Specifications
Material	PBT
Temperature	Operating • -40° C to 125° C Non Operating • -40° C to 140° C
Dielectric Withstanding Voltage (DWV)	1500 VDC Min.
Insulation resistance	4000 MΩ Min.
Available Contact Positions	64
Module Slots Needed	1

Primary mating module 510104134. (May mate with other Receiver modules, as well.)

*Please note: VPC receiver modules must be separated into two pieces in order to extract contacts. For detailed instructions please consult the user manual/procedure sheet for this module before extracting contacts.

	Part Number	Description
	610110108	Signal, Contact, ITA,TriPaddle,7 Amp, 20-24 AWG
	610110129	Signal, Contact, ITA, TriPaddle, 10 Amp, 14-18 AWG
	610110169	Signal, Contact, ITA, TriPaddle, 7 Amp, 26-28 AWG

	Part Number	Description

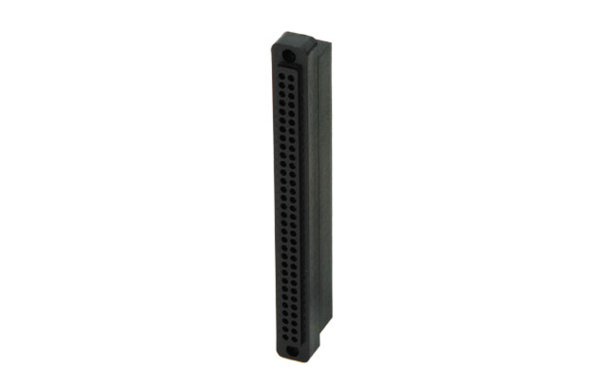

	510108112	Signal, Module, ITA, TriPaddle, 90 Series, 64 Position, with Right Angle Contacts

	Part Number	Description
	510104134	Signal, Module, Receiver, TriPaddle, 90 Series, 64 Position

	Part Number	Description
	510109303	Module Accessory Kit, Quantity 26 4-40 x .560" Socket Head Cap Screws

	Part Number	Description
	510108140	PCB Adapter, ITA, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors

	Part Number	Description
	510104128	PCB Adapter, Receiver, TriPaddle, 64 Position, to PCB-Mounted 2x34 pin (BERG 65496-019) Connectors

	Part Number	Description
	510109296	Strain Relief Plate, ITA, 90 Series
